TiTe2 (Titanium Ditelluride)

TiTe2 Titanium Ditelluride TiTe2 is a semimetal. The layers are stacked together via van der Waals interactions and can be exfoliated into thin 2D layers. The semi-metal Titanium Ditelluride belongs to the group-VI transition metal dichalcogenides (TMDC). To buy TiTe2 crystals please click here.

The TiTe2 crystals produced at HQ Graphene have a typical lateral size of ~0.8 cm, hexagonal shaped and have a metallic appearance. More information about the TiTe2 crystals we sell can be found below.

TiTe2 crystal properties
Crystal size ~8 mm
Electrical properties Semimetal
Crystal structure hexagonal
Unit cell parameters a = b = 0.377 nm, c = 0.649 nm, α = β = 90°, γ = 120°
Monolayer properties Link to C2DB containing calculated properties
Type Synthetic
Purity >99.995 %
Characterized by XRD, Raman, EDX
More information? Please contact us by email or phone

The single crystal TiTe2 is characterized using:

XRD: single crystal and powder X-ray diffraction (D8 Venture Bruker and D8 Advance Bruker)
EDX: Energy-dispersive X-ray spectroscopy for stoichiometric analysis
Raman: 785 nm Raman system

Raman, XRD and EDX on TiTe2:

Click on an image to zoom

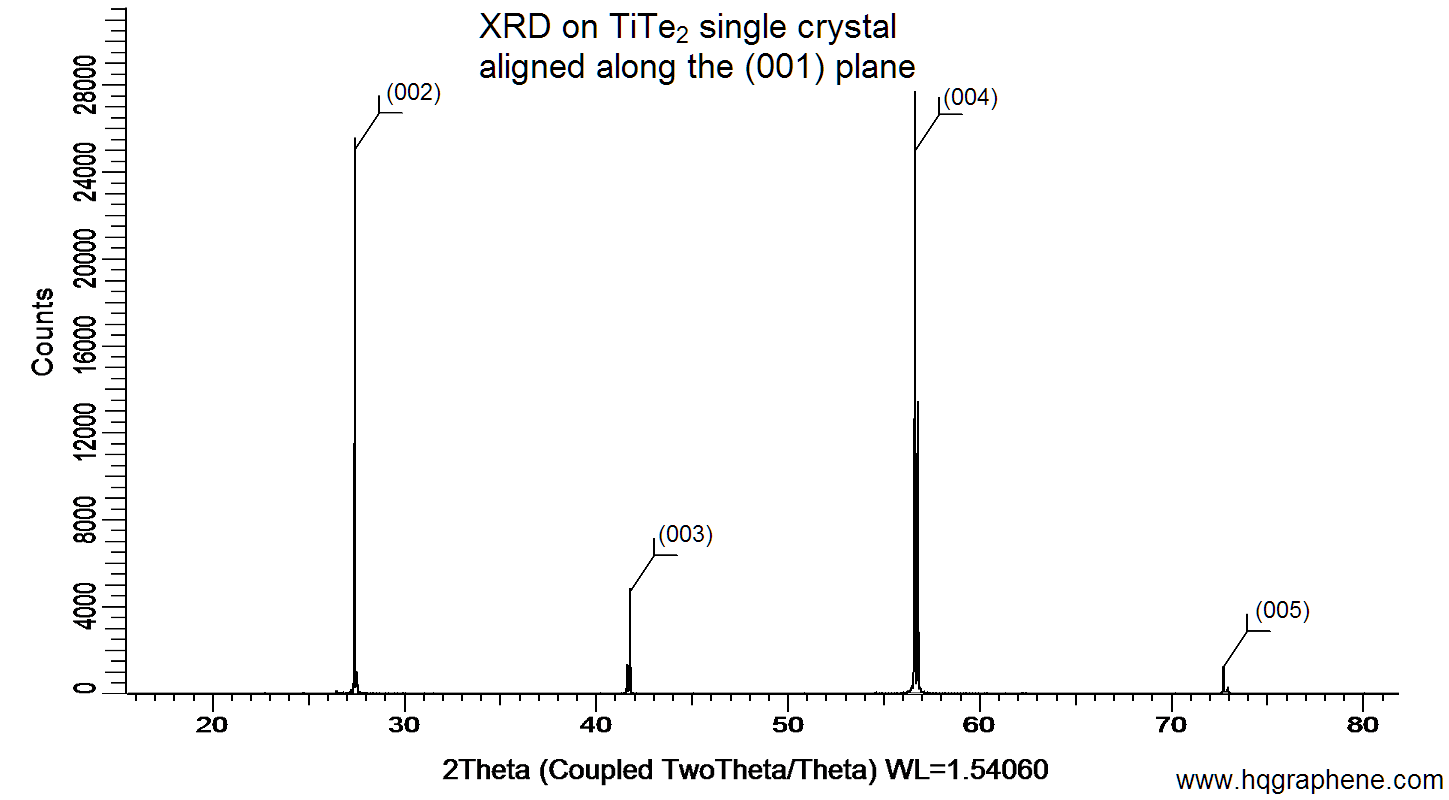

X-ray diffraction on a TiTe2 single crystal aligned along the (001) plane. XRD was performed at room temperature using a D8 Venture Bruker. The 4 XRD peaks correspond, from left to right, to (00l) with l = 2, 3, 4, 5

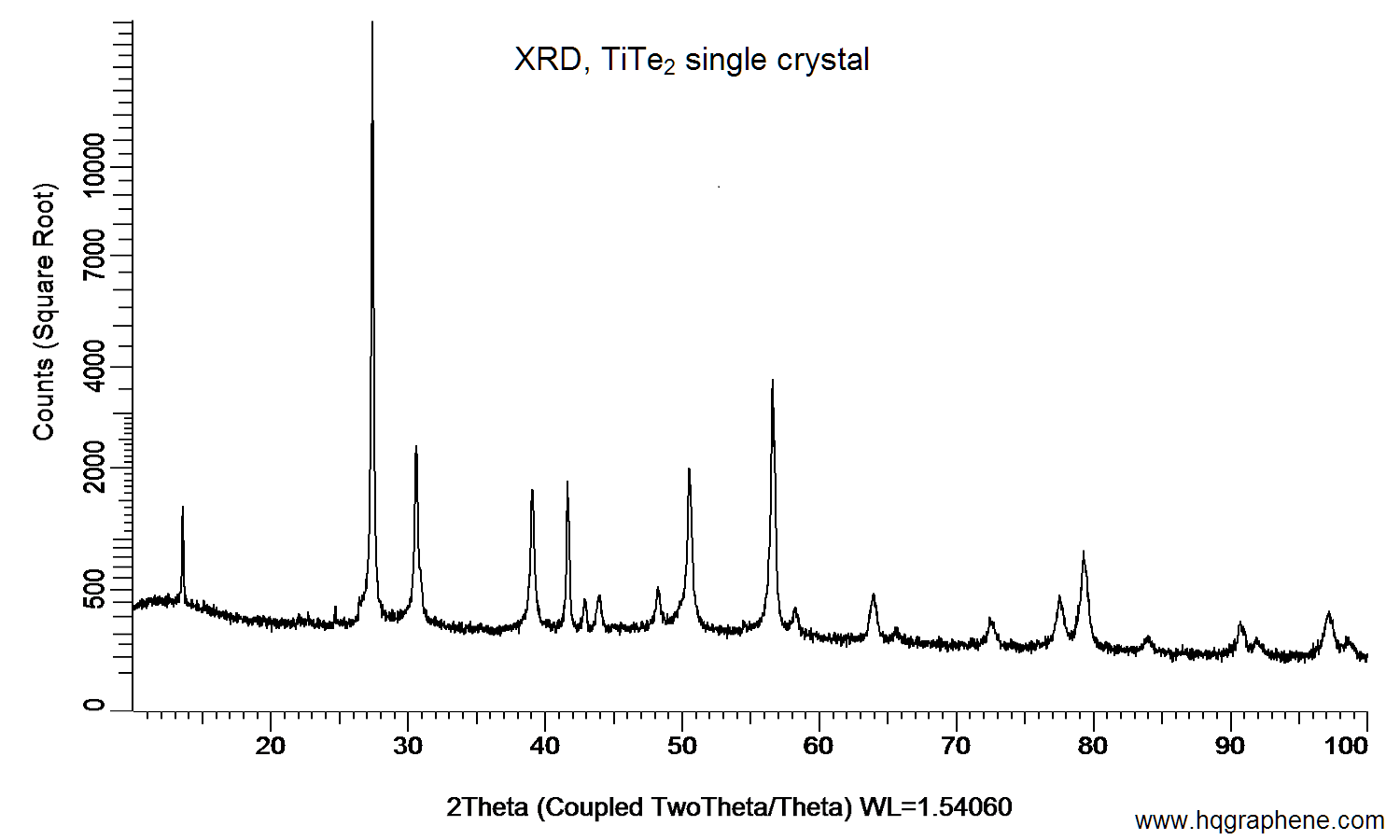

Powder X-ray diffraction (XRD) of a single crystal TiTe2. X-ray diffraction was performed at room temperature using a D8 Venture Bruker.

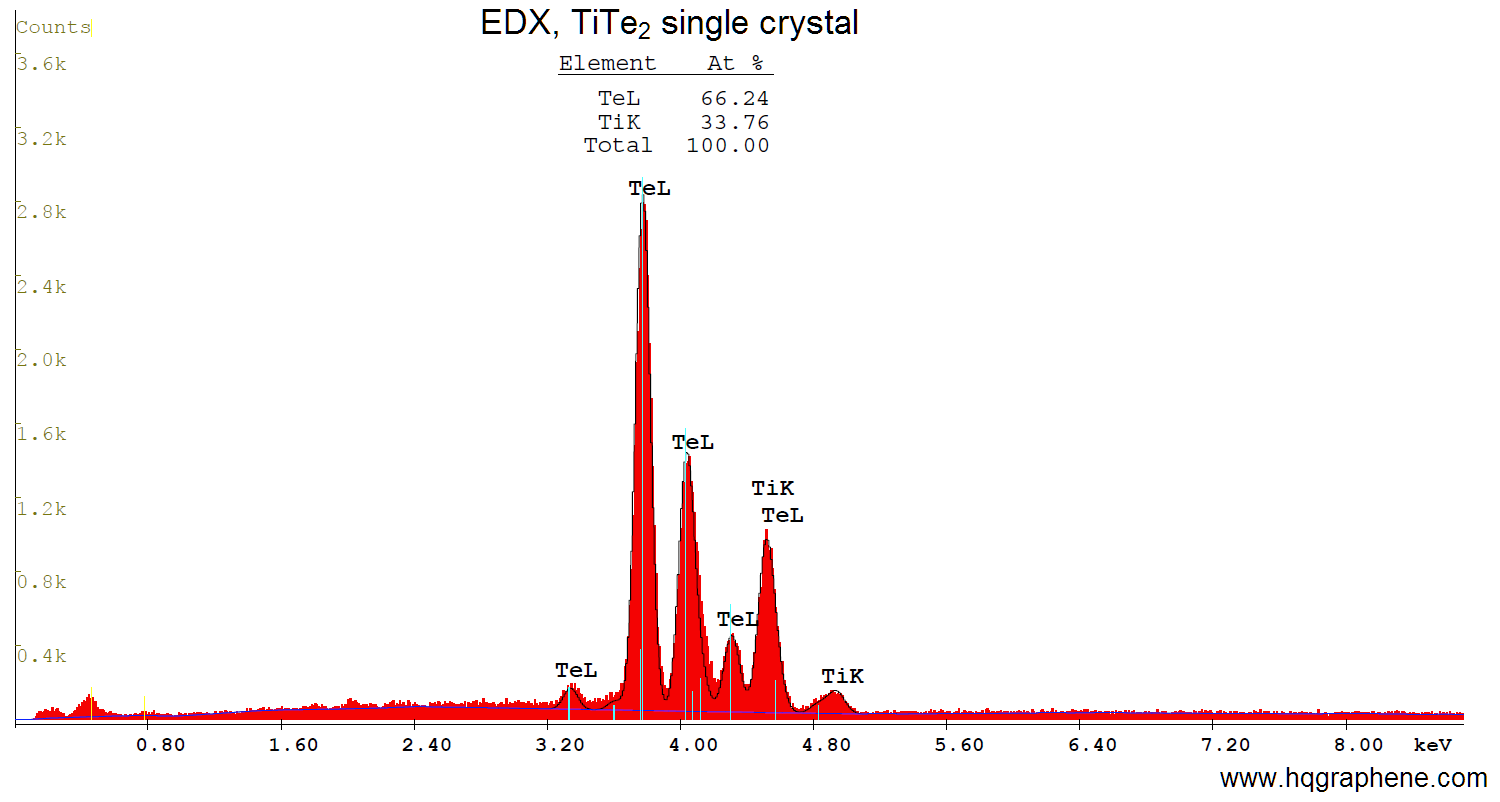

Stoichiometric analysis of a single crystal TiTe2 by Energy-dispersive X-ray spectroscopy (EDX).

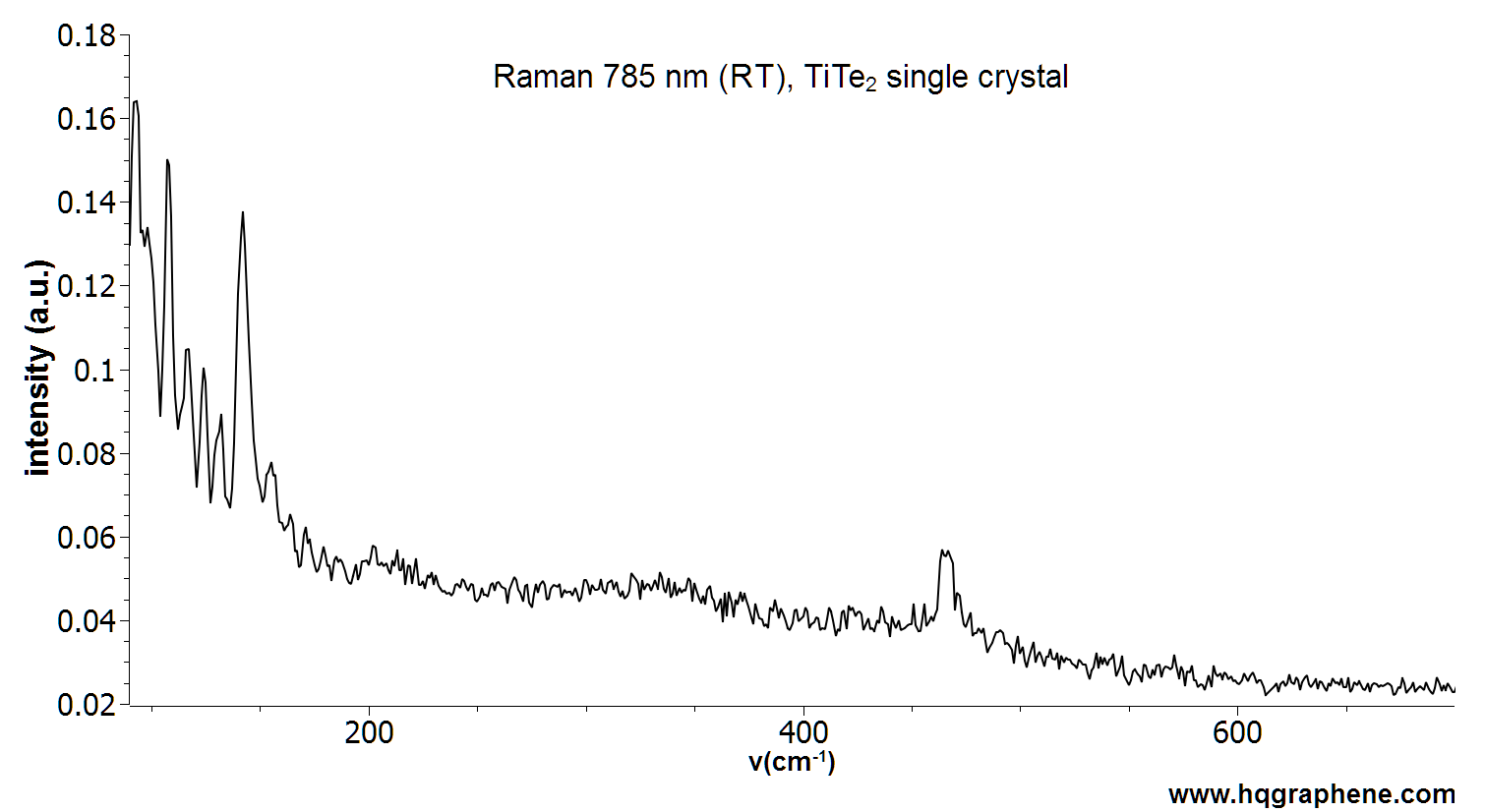

Raman spectrum of a single crystal TiTe2. Measurement was performed with a 785 nm Raman system at room temperature.

HQ Graphene Wiki on:

TiTe2 (Titanium Ditelluride)

1. Chen, P., et al. "Emergence of charge density waves and a pseudogap in single-layer TiTe2." Nature communications 8.1 (2017): 516.

2. Sie, E.J., et al. "Time-resolved XUV ARPES with tunable 24-33 eV laser pulses at 30 meV resolution." Nature communications 10.1 (2019): 3535.

3. Beaulieu, S., et al. "Unveiling the orbital texture of 1T-TiTe2 using intrinsic linear dichroism in multidimensional photoemission spectroscopy." npj quantum materials 6.1 (2021): 93.
