NbS3 (Niobium Trisulfide)

NbS3 is a 2D material. The layers are stacked together via van der Waals interactions and can be exfoliated into thin 2D layers. To buy NbS3 crystals please click here.

The NbS3 crystals produced at HQ Graphene have a typical lateral size of ~0.1-0.3 cm, needle shaped and have a metallic appearance. More information about the NbS3 crystals we sell can be found below.

NbS3 crystal properties
Crystal size ~3 mm, needle shaped
Electrical properties Semiconductor
Crystal structure Triclinic
Unit cell parameters a = 0.496 nm, b = 0.654 nm, c = 0.910 nm, α = γ = 90°, β = 97.17°
Monolayer properties Link to C2DB containing calculated properties
Type Synthetic
Purity >99.995 %
Characterized by XRD, EDX
More information? Please contact us by email or phone

The single crystal NbS3 is characterized using:

XRD: single crystal and powder X-ray diffraction (D8 Venture Bruker and D8 Advance Bruker)
EDX: Energy-dispersive X-ray spectroscopy for stoichiometric analysis

XRD and EDX on NbS3:

Click on an image to zoom

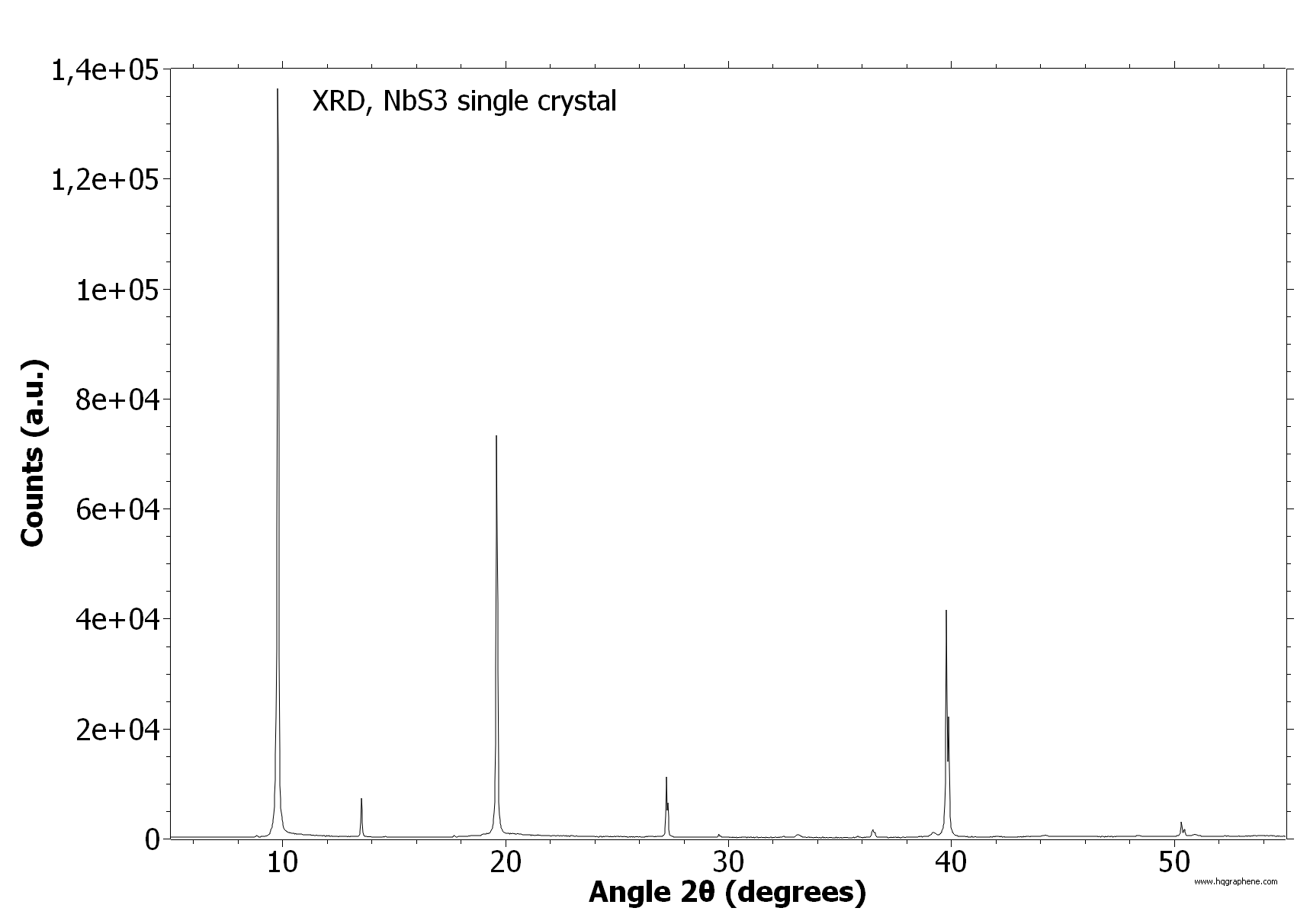

Powder X-ray diffraction (XRD) of a single crystal NbS3. X-ray diffraction was performed at room temperature using a D8 Venture Bruker.

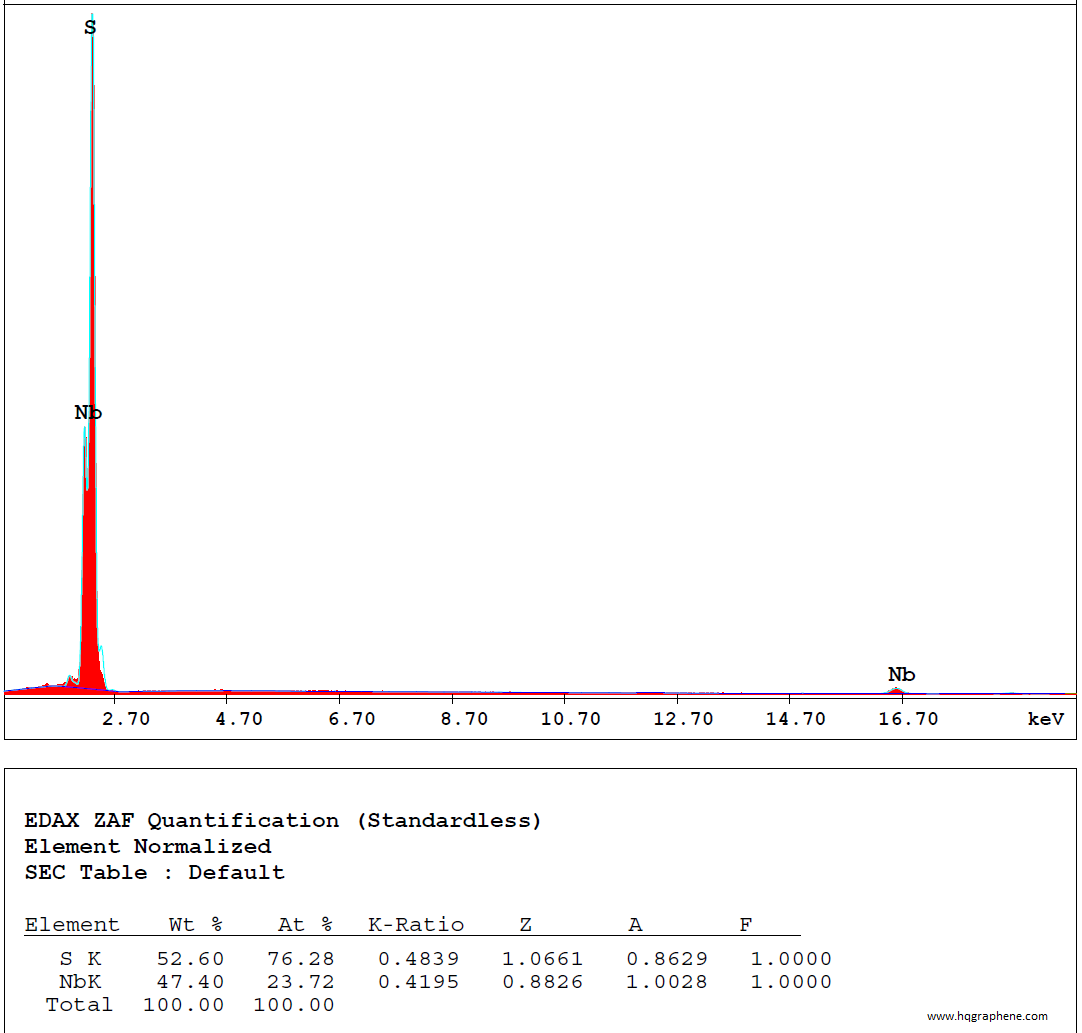

Stoichiometric analysis of a single crystal NbS3 by Energy-dispersive X-ray spectroscopy (EDX).
