Bi2S3 (Bismuth Sulfide)

Bi2S3 Bismuth Sulfide Bi2S3 is a semiconductor. The layers are stacked together via van der Waals interactions and can be exfoliated into thin 2D layers. Bi2S3 belongs to the group-15 post-transition metal trichalcogenides.


Bi2S3 crystal properties
Crystal size ~10 mm
Electrical properties Semiconductor
Crystal structure Orthorhombic
Unit cell parameters a = 0.4025, b = 1.117 nm, c = 1.135 nm, α = β = γ = 90°
Type Synthetic
Purity >99.995%
Characterized by XRD, Raman, EDX, Hall measurement
More information? Please contact us by email or phone


The single crystal Bi2S3 is characterized using:

XRD: single crystal and powder X-ray diffraction (D8 Venture Bruker and D8 Advance Bruker)
EDX: Stoichiometric analysis
Raman: 785nm Raman system

Raman, XRD and EDX on Bi2S3:

Click on an image to zoom

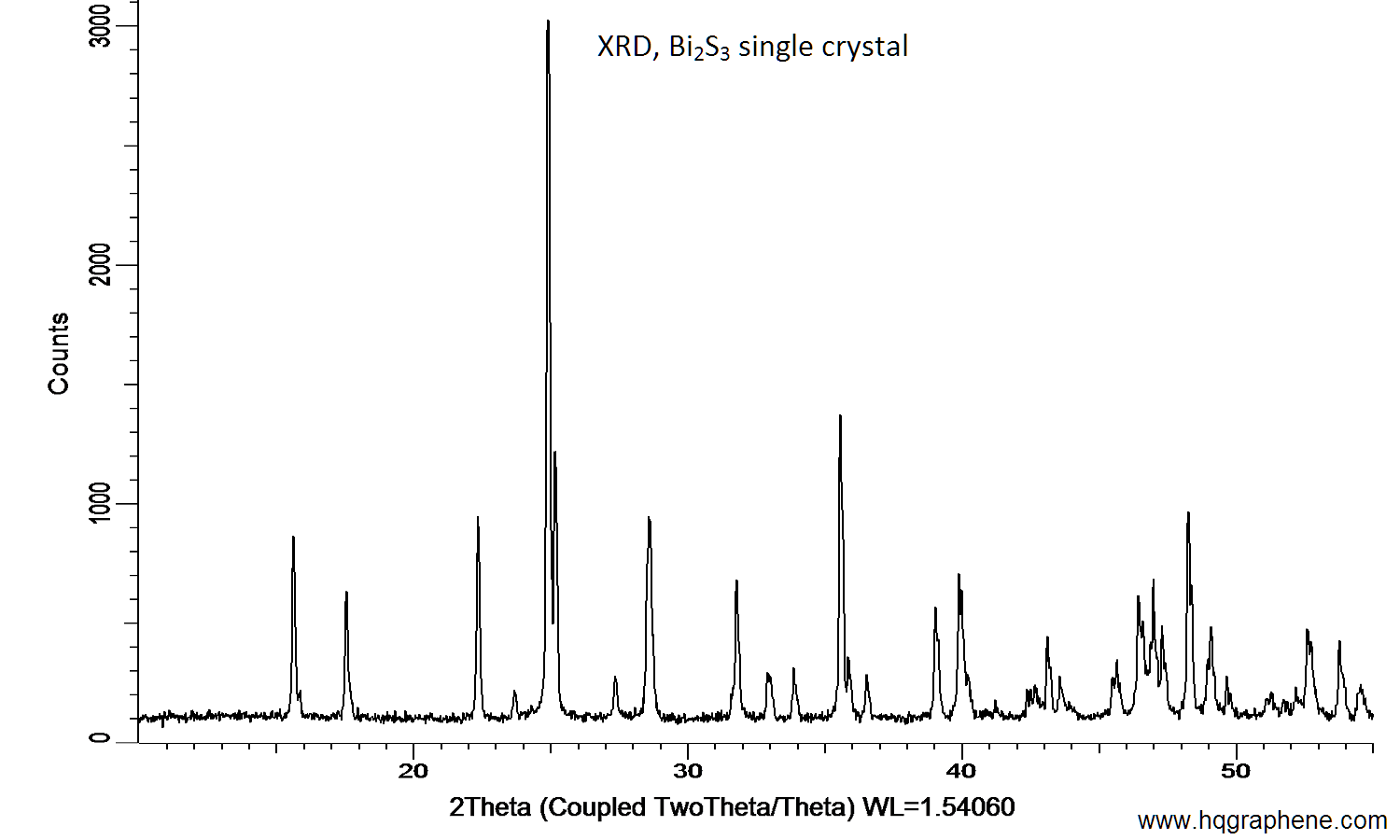

XRD of a single crystal Bi2S3. X-ray diffraction was performed at room temperature using a D8 Venture Bruker.

EDX of a single crystal Bi2S3.

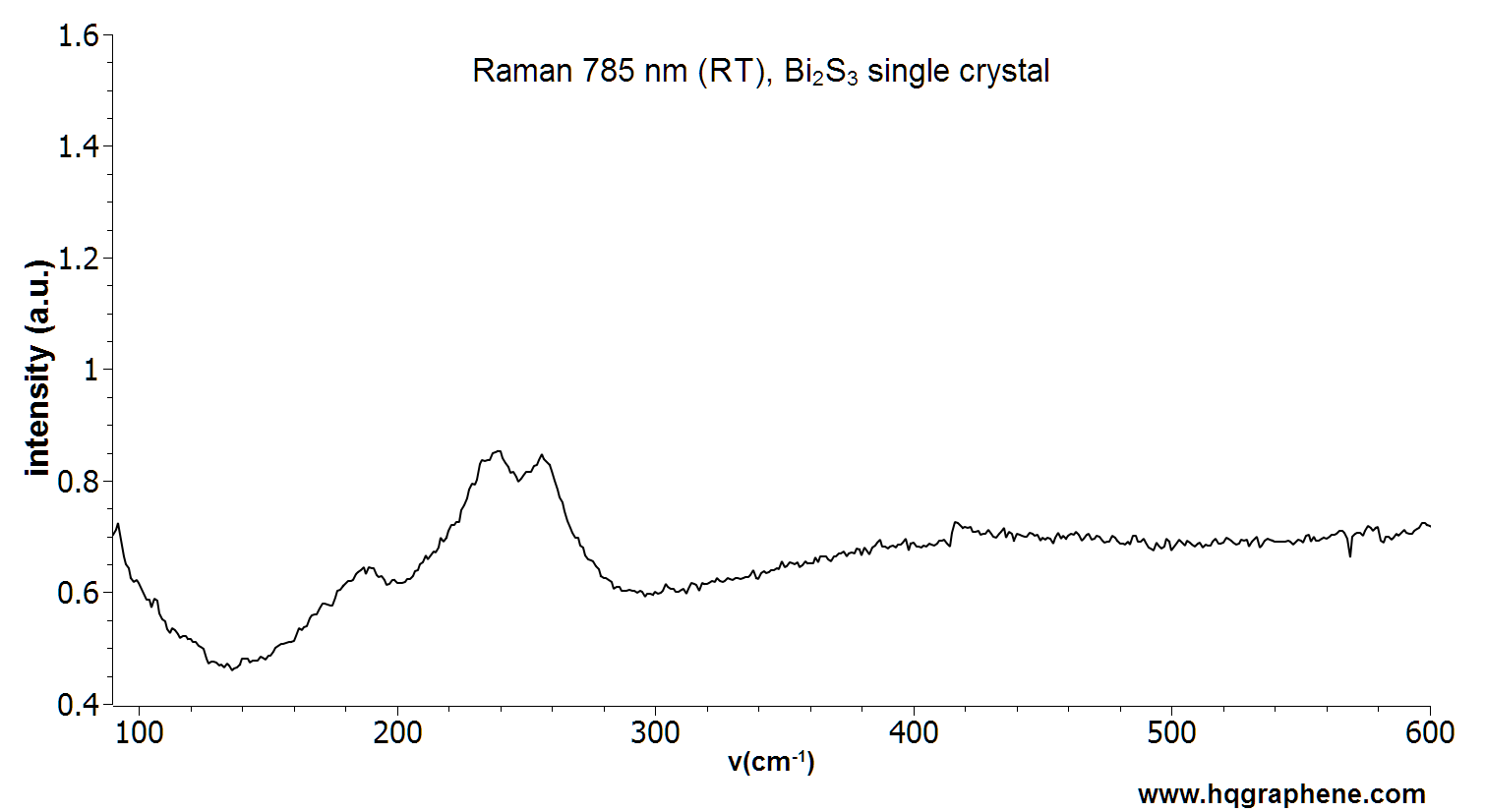

Raman of a single crystal Bi2S3. Measurement with a 785nm Raman at room temperature.





HQ Graphene Wiki on:

Bi2S3 (Bismuth Sulfide)


1. Publications to be added soon!
